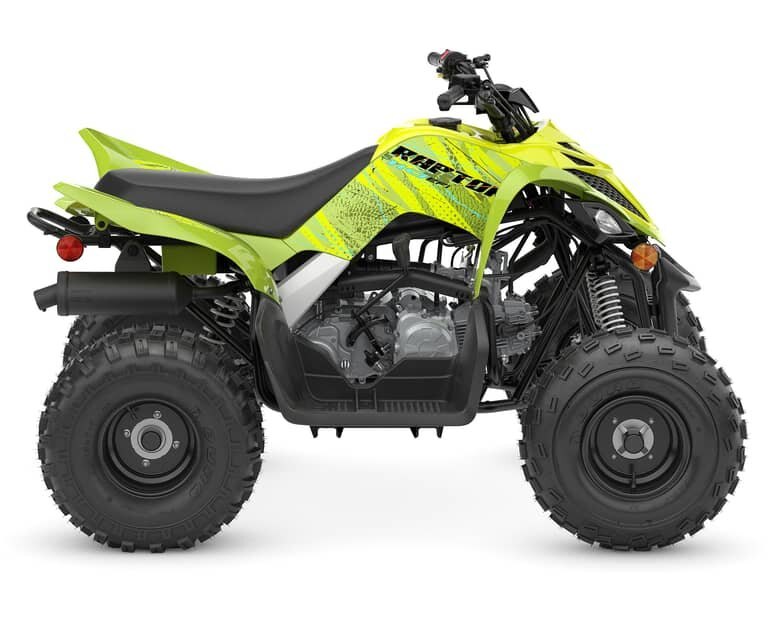

2027 Yamaha Raptor 110 Tactical Green/Acid Green

  • 2027 Yamaha Raptor 110 Tactical Green/Acid Green

CURRENT PROMOTIONS

Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

THE YOUTH ATV ICON. A 112cc engine, fuel injection, electric start, and iconic Raptor styling make this youth ATV pure fun for riders 10 and up.

Specifications
Model
RAPTOR
Category Name
ATVs
Year
2027
Sale Type
New
Manufacturer
Yamaha
Color
Tactical Green/Acid Green
engine
ENGINE
Air-cooled, SOHC, 2-valve, single
Starting
Electric with auxillary kick
FINAL DRIVE
O-ring Chain Drive
DISPLACEMENT
112cc
TRANSMISSION
Fully automatic CVT with reverse
FUEL DELIVERY
Yamaha Fuel Injection (YFI), 22mm
BORE AND STROKE
52.4mm x 51.8mm
COMPRESSION RATIO
9.2:1
chassis
TIRES (REAR)
AT18 x 9-8
BRAKES (REAR)
Drum
TIRES (FRONT)
AT18 x 7-8
BRAKES (FRONT)
Dual Drum
SUSPENSION (REAR)
Monoshock swingarm; 5.7" travel
SUSPENSION (FRONT)
Single A-arm; 5.0-in travel
highlights

2027 Yamaha Raptor 110 Tactical Green/Acid GreenCompact, Sporty, & Confidence-Inspiring 112cc Engine

The Raptor 110 is engineered to deliver maximum fun for ATV riders ages 10 and up. Its fuel-injected 112cc air-cooled SOHC 4-stroke engine is tuned to produce excellent low- to mid-range performance throughout.

2027 Yamaha Raptor 110 Tactical Green/Acid GreenReduced Maintenance Design

Routine maintenance is straightforward thanks to convenient features like the toolless quick-access air filter element.

2027 Yamaha Raptor 110 Tactical Green/Acid GreenScaled Down, Not Scaled Back

Compact A-arm front suspension is tuned for light, sporty steering, and a comfortable ride. Preload-adjustable front shocks offer 5 inches of wheel travel, contributing to the Raptor 110's full-size ATV look. The rear swingarm features a 5-way preload adjustable shock delivering 5.7 inches of wheel travel.

2027 Yamaha Raptor 110 Tactical Green/Acid GreenComfortable Chassis

An advanced frame design houses a large 1.8-gallon fuel tank that centralizes mass, while a plush seat and roomy integrated floorboards optimize comfort on every adventure.

2027 Yamaha Raptor 110 Tactical Green/Acid GreenYamaha Raptor 700R DNA

Low-profile Duro® tires on lightweight wheels give the Raptor 110 sporty looks and sharp handling, with styling unmistakably inspired by the Raptor 700R.



key features
  • Fuel-injected 112cc four-stroke engine
  • Push-Button Electric Start
  • Automatic CVT Transmission
  • Adjustable Throttle Limiter
  • Standard Reverse Gear
  • Raptor Inspired Sport Styling



critical data
WIDTH
40.2 in
HEIGHT
39.0 in
LENGTH
58.5 in
Warranty
One year (unlimited mileage)
WHEELBASE
40.6 in
WET WEIGHT
287.5 lb
SEAT HEIGHT
29.5 in
features & benefits

ENGINE

  • Air-cooled, 112cc, SOHC, 2-valve, 4-stroke powerplant produces smooth, reliable, novice friendly power.
    • Proven, reliable design
    • Easy to use, linear power delivery
    • Solid low-to-mid-range performance
    • Air cooling for simplicity & reduced maintenance
  • Push-button electric starting backed up by an auxiliary kick starter.
    • Electric starting makes learning to ride more fun
  • Single overhead camshaft (SOHC), 2-valve design.
    • Simple 1- intake valve & 1- exhaust valve cylinder head design
    • Utilizes conventional rocker arms & screw type tappet adjusters for easier maintenance
  • Flat top piston & lightweight ball bearing style crankshaft.
    • 9.2:1 compression ratio, uses regular gas
    • Lightweight components means faster engine response
  • Automatic cam chain adjuster.
    • Reduces maintenance & mechanical engine noise
  • Fully automatic CVT transmission with reverse.
    • Automatic clutch and no gears allows young riders to concentrate on the basics of riding & developing riding skills
    • Automotive style gated shifter: forward, neutral & reverse
    • Handlebar mounted indicator lights provide indication of drive selection (Neutral or reverse)
  • Easy access, no tools required washable foam air filter.
    • Reduces maintenance costs
    • Re-usable design

Chassis

  • Rugged round tube steel frame.
    • Compact design provides nimble, responsive handling
    • Low seat height (750 mm / 29.5") makes getting on & off easy
  • Adjustable independent, single A-arm front suspension.
    • 5-position spring preload adjustability to match rider weight and / or trail conditions
    • 126 mm (5") front wheel travel
    • Grease fitting on selected components
  • Adjustable single shock rear suspension.
    • 5-position spring preload adjustability
    • 145 mm (5.7") front wheel travel
  • Dual front drum brakes.
    • Independent (separate) front & rear braking for enhanced control & terrain-ability
    • Hand-operated brake levers are similar to those used on a bicycle for easy familiarity
  • Single drum rear brake with handlebar mounted lever style parking brake.
    • Consistent braking performance
  • Rugged steel rims fitted with 18" tires.
    • Steel rims provide excellent durability & traction
    • Tire design enhances steering precision, ride comfort & traction
  • Rugged & roomy floorboards.
    • Excellent rider foot protection
    • Helps reduce mud & water splash
  • Sporty styling & rugged body work.
    • Sporty styling & high fenders are inspired by the mighty Raptor 700R.
  • Durable O-ring drive chain.
    • Single adjusting bolt makes chain adjusting easy
  • Low maintenance, sealed battery (battery should be charged during extended storage).
    • Battery is sealed... no need to check electrolyte levels or add distilled water

SAFETY FEATURES

  • Keyed ignition lets parents control use
  • Heat shields on exhaust protect young riders from hot components
  • Adjustable speed limiter screw on throttle housing restricts throttle lever movement to reduce acceleration & top speed.
  • 2-stage rpm limiter device limits engine rpm. As skills improve, the limiter can be removed & maximum engine rpm will increase from 4,900 rpm to 8,500 rpm making a significant difference in power & performance.
