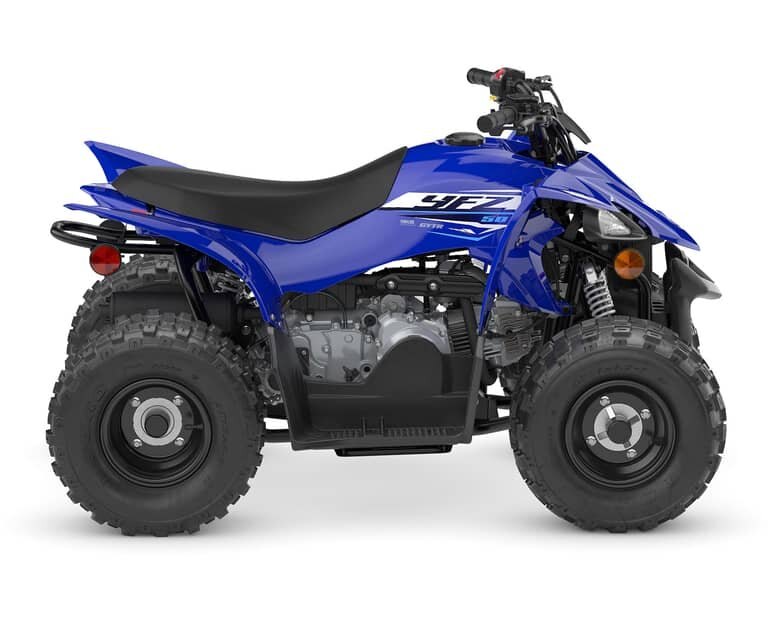

2027 Yamaha YFZ50 Team Yamaha Blue

  • 2027 Yamaha YFZ50 Team Yamaha Blue
  • 2027 Yamaha YFZ50 Team Yamaha Blue
  • 2027 Yamaha YFZ50 Team Yamaha Blue
  • 2027 Yamaha YFZ50 Team Yamaha Blue
  • 2027 Yamaha YFZ50 Team Yamaha Blue
  • 2027 Yamaha YFZ50 Team Yamaha Blue
  • 2027 Yamaha YFZ50 Team Yamaha Blue

CURRENT PROMOTIONS

Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

START YOUR ENGINES. Automatic transmission, electric start, and parental controls give young riders age 6 and up a great start.

Specifications
Model
YFZ
Category Name
ATVs
Year
2027
Sale Type
New
Manufacturer
Yamaha
Color
Bleu Team Yamaha
engine
ENGINE
Air-cooled, SOHC, 2-valve, single
IGNITION
CDI
Starting
Electric with auxiliary kick starter
FINAL DRIVE
O-ring Chain Drive
DISPLACEMENT
49.4cc
TRANSMISSION
Fully automatic CVT
FUEL DELIVERY
Mikuni VM12 carburetor
BORE AND STROKE
39 mm x 41.4 mm
COMPRESSION RATIO
8.5 : 1
chassis
TIRES (REAR)
AT16 x 7-7
BRAKES (REAR)
Single drum / Lockable hand lever parking brake
TIRES (FRONT)
AT16 x 6.5-7
BRAKES (FRONT)
Dual Drum
SUSPENSION (REAR)
Adjustable, single shock swing arm, 51 mm (2") of wheel travel
SUSPENSION (FRONT)
Single I-Arm, 60 mm (2.4") of wheel travel
highlights

2027 Yamaha YFZ50 Team Yamaha BlueBeginner-Friendly Four-Stroke Performance

The YFZ50 is purpose-built as the ideal first ATV for riders ages 6 and up. With a low-maintenance 49cc engine tuned for responsive, controllable performance and engine limiters with a power cut-off tether switch for safety, young riders can grow their skills with confidence.

2027 Yamaha YFZ50 Team Yamaha BlueReduced Maintenance Design

Maintenance is straightforward thanks to convenient features like the toolless quick-access air filter element.

2027 Yamaha YFZ50 Team Yamaha BlueScaled Down, Not Scaled Back

Single I-arm front suspension is tuned for light, easy steering and a comfortable ride. The rear swingarm uses a compact single shock for reliable capability and comfort. Additional convenience features include a fully automatic CVT transmission and electric start with a back-up kickstart.

2027 Yamaha YFZ50 Team Yamaha BlueComfortable Chassis

A robust steel frame houses a large low-sitting 1.5-gallon fuel tank that centralizes mass, while a plush seat and roomy integrated floorboards optimize comfort.

2027 Yamaha YFZ50 Team Yamaha BlueYamaha Sport ATV DNA

Styling draws clear inspiration from the race-proven YFZ450R. Durable Duro® tires and lightweight wheels round out the sporty look and handling character.



key features
  • 49cc four-stroke SOHC engine
  • Automatic CVT
  • A two-stage rpm limiter and throttle limiter
  • Tethered Safety Switch
  • Push-button electric start



critical data
WIDTH
820 mm (32.3")
HEIGHT
770 mm (30.3")
LENGTH
1250 mm (49.2")
Warranty
One year (unlimited mileage)
WHEELBASE
830 mm (32.7")
WET WEIGHT
100 kg (220 lb)
SEAT HEIGHT
585 mm (23")
FUEL CAPACITY
5.6 L (1.2 Imp. gal)
MINIMUM GROUND CLEARANCE
88 mm (3.5")
features & benefits

ENGINE

  • Air-cooled, 49.4 cc, SOHC, 2-valve, 4-stroke powerplant produces smooth, reliable, novice friendly power
    • Easy to use, linear power delivery makes learning to ride fun & easy
    • Air cooling for simplicity & reduced maintenance
  • Push-button electric starting backed up by an auxiliary manual kick starter.
    • Electric starting makes learning to ride more fun
  • Single overhead camshaft (SOHC), 2-valve design
    • Basic 1- intake valve & 1- exhaust valve cylinder head design
    • Utilizes conventional rocker arms & screw-type tappet adjusters for easier maintenance
  • Mikuni VM12 carburetor.
    • Crisp throttle response with good fuel economy
    • Easy access handlebar mounted choke lever
  • Fully automatic transmission
    • Continuously Variable Transmission (CVT) and no gears allows young riders to concentrate on developing riding skills
  • Maintenance-free capacitor discharge ignition (CDI)
    • Produces a strong spark for fast starts
    • Provides precise ignition timing / mapping for optimum engine performance at all rpms
  • Easy access, no tools required washable foam air filter
    • Reduces maintenance costs
    • Reusable design
  • Spark arrestor & catalyzer equipped exhaust system
    • Quiet design
    • "Cleanable" spark arrestor prevents stray sparks from exiting the exhaust
    • Heat shield protects young riders from hot component

Chassis

  • Rugged round tube, steel frame
    • Compact design provides nimble, responsive handling
    • Low seat height (585 mm / 23 inch) makes getting on & off easy
  • Single I-arm dual shock front suspension
    • 60 mm (2.4 inches) front wheel travel
    • Grease fitting on selected components
  • Adjustable, single shock rear suspension
    • 5-position spring preload adjustability
    • 51 mm (2 inch) rear wheel travel
  • Dual front drum brakes
    • Independent (separate) front & rear braking for enhanced control & terrain-ability
    • Hand-operated brake levers are similar to those used on a bicycle for easy familiarity
  • Single drum rear brake with handlebar mounted lever style parking brake
    • Consistent braking performance
    • Hand-operated brake levers are similar to those used on a bicycle for easy familiarity
    • Parking brake prevents machine from moving when idling or when parked on uneven surfaces
  • Rugged steel rims fitted with 16" tires
    • Steel rims provide excellent durability
    • Tire design enhances steering precision, ride comfort & traction
  • 6 litre fuel tank
    • On - off - reserve petcock helps to prevent running out of gas
    • Reserve portion of tank is 0.7 litres
  • Rugged & roomy floorboards
    • Excellent rider foot protection
    • Helps reduce mud & water splash
  • Aggressive styling
    • Aggressive, sporty styling & high fenders are inspired by the mighty YFZ450R
  • Chain final drive
    • Single adjusting bolt makes chain adjusting easy
  • Low maintenance, sealed battery
    • Battery is sealed... no need to check electrolyte levels or add distilled water

SAFETY FEATURES

  • Keyed ignition lets parents control use
  • Adjustable speed limiter screw on throttle housing restricts throttle lever movement to reduce acceleration & top speed.
  • 2-stage rpm limiter device limits engine rpm. As skills improve, the limiter can be removed & maximum engine rpm will increase from 5,200 rpm to 7,400 rpm making a significant difference in power & performance.
  • Power cut-off tether switch with lanyard allows parent or adult supervisor to walk beside the unit while a novice is learning & stop the engine if required
